Description
Description

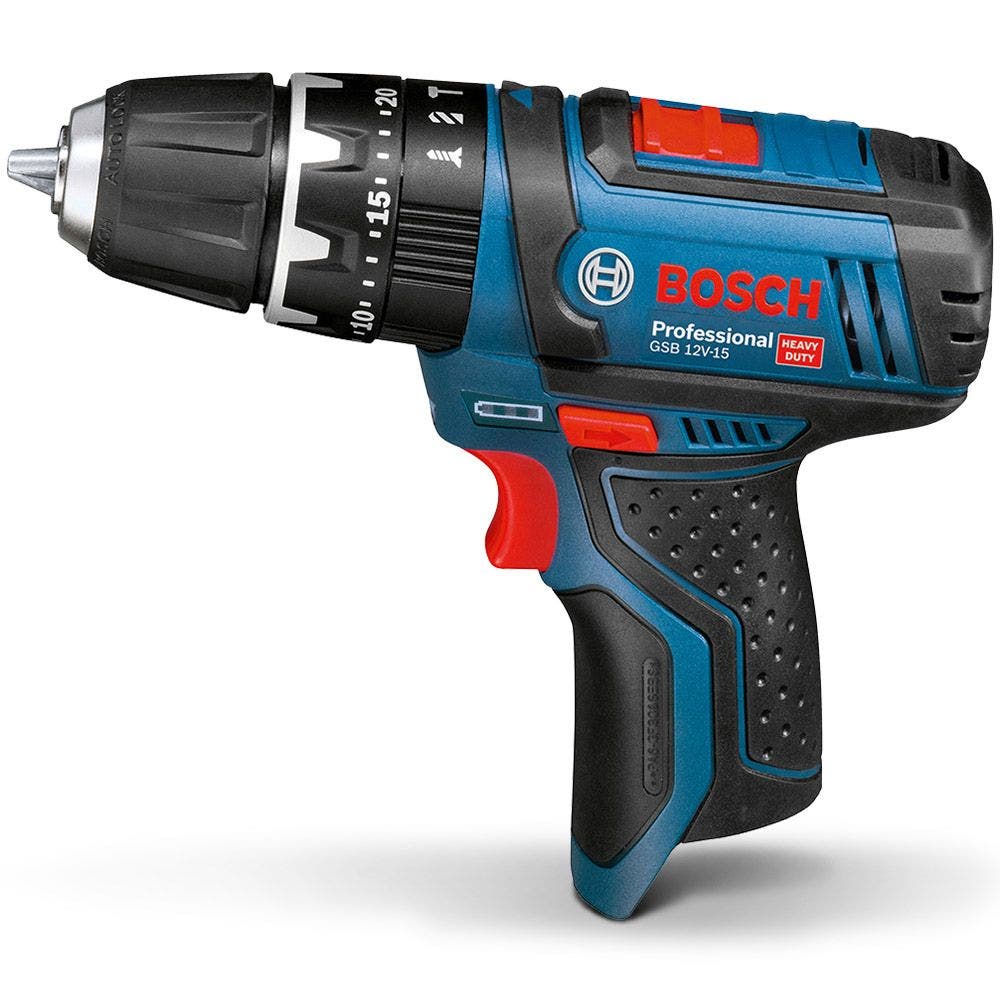

- The shortest 12V powerhouse with impact drilling function.
- At 189 mm it has the shortest design in its class for optimum handling, especially when performing drilling and screwdriving applications overhead and in tight spaces.
- It has a newly developed 2-speed planetary gearbox for powerful screwdriving and drilling applications in wood and metal, and impact drilling in masonry.
- Professional quality 10 mm Auto-Lock drill chuck with a max. impact rate of 19,500 bpm
- No-load speed (1st gear / 2nd gear) 0-380 / 0-1300 rpm
- Torque (soft/hard) 15/30Nm
- Torque settings 20+1
- All Bosch 10.8 & 12 Volt Professional tools, batteries and chargers are 100% compatible
Specifications
- Torque (soft/hard/max.): 15/30/-Nm
- Max. impact rate: 19,500bpm
- Chuck capacity, min./max.: 1/10mm
- Torque settings: 20+1
- Tool dimensions (height): 175mm
- Clamping range, min.: 0mm
- Clamping range, max.: 0mm
- Spindle collar diameter: 0mm
- Drilling diameter:
- Max. drilling diameter in wood: 19mm
- Max. drilling diameter in steel: 10mm
- Max. drilling diameter in masonry: 10mm
- Screw diameter:
- Max. screw diameter: 7mm
- Noise/vibration information:
- Sound pressure level: 93dB(A)
- Sound power level: 82dB(A)
- Uncertainty K: 3dB
- Drilling in metal:
- Vibration emission value ah: 2.5m/s²
- Uncertainty K: 1.5m/s²
- Impact drilling in masonry:
- Vibration emission value ah: 10.5m/s²
- Uncertainty K: 1.5m/s²
- Screwdriving:
- Vibration emission value ah: 2.5m/s²
- Uncertainty K: 1.5m/s²
Specification
Specifications
| Part No | 06019B6901 |
|---|---|
| Barcode | 3165140630405 |
| Voltage | 12V |
| No Load Speed (RPM) | 0 – 380 / 0 – 1,300 |
| Brand | Bosch |
| Warranty | 6 Year |
| Net Weight (kg) | 1 |
Videos & Manuals
Manuals
- Bosch 12V Combi Drill Skin GSB 12V-15 06019B6901 - Product Manual
