Description
Description

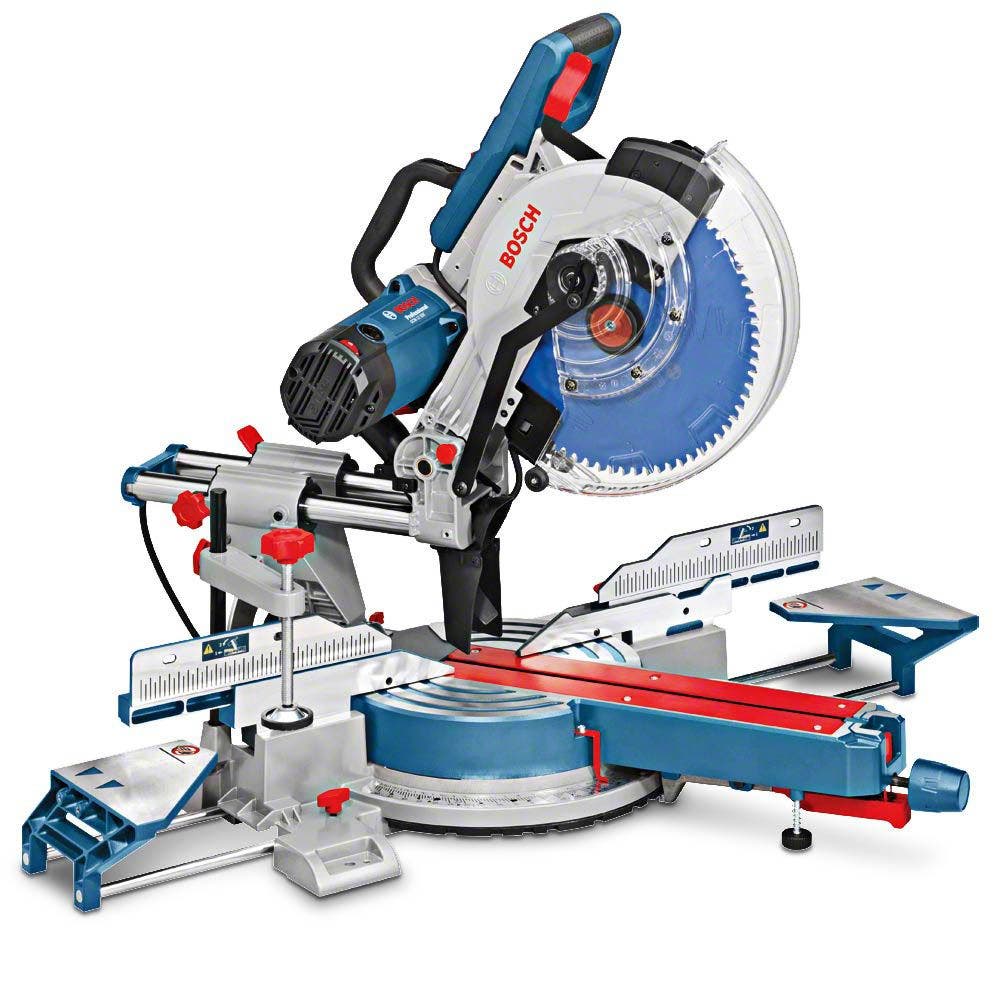

High cutting capacity and variable speed for a wide variety of applications
- Vertical cutting capacity of 120 mm
- Variable speed for adapting the cutting speed to the material
- SDS saw blade changes
- Speed preselection of 3,100 – 4,000 rpm
- Intuitive bevel lock
- Integrated table extensions for material support
- Easy changing of the saw blade
- Bevel setting of up to 47° on both sides
Specifications:
- Cutting capacity, 0° 85 x 370 mm
- Cutting capacity 0° with spacer (max. vertical) 120 x 200 mm
- Cutting capacity 0° with spacer (max. horizontal) 70 x 400 mm
- Cutting capacity, 45° mitre 85 x 250 mm
- Cutting capacity, 45° incline 60 x 360 mm
- Mitre setting 52 ° L / 60 ° R
- Bevel setting 47 ° L / 47 ° R
- Tool dimensions (width x length x height) 860 x600 x530 mm
- No-load speed 3,100 – 4,000 rpm
- Saw blade diameter 305 mm
- Saw blade bore diameter 30 mm
- Weight 28.6 kg
- Rated input power 1,800 W
Noise/Vibration:
- Sound pressure level 92 dB(A)
- Sound power level 105 dB(A)
- Uncertainty K 3 dB
Sawing Wood:
- Vibration emission value ah 2.5 m/s²
- Uncertainty K 1.5 m/s²
Specification
Specifications
| Part No | 0601B23140 |
|---|---|
| Barcode | 3165140920421 |
| Brand | Bosch |
| Warranty | 6 Year |
| Net Weight (kg) | 18.9 |
