Description
Description

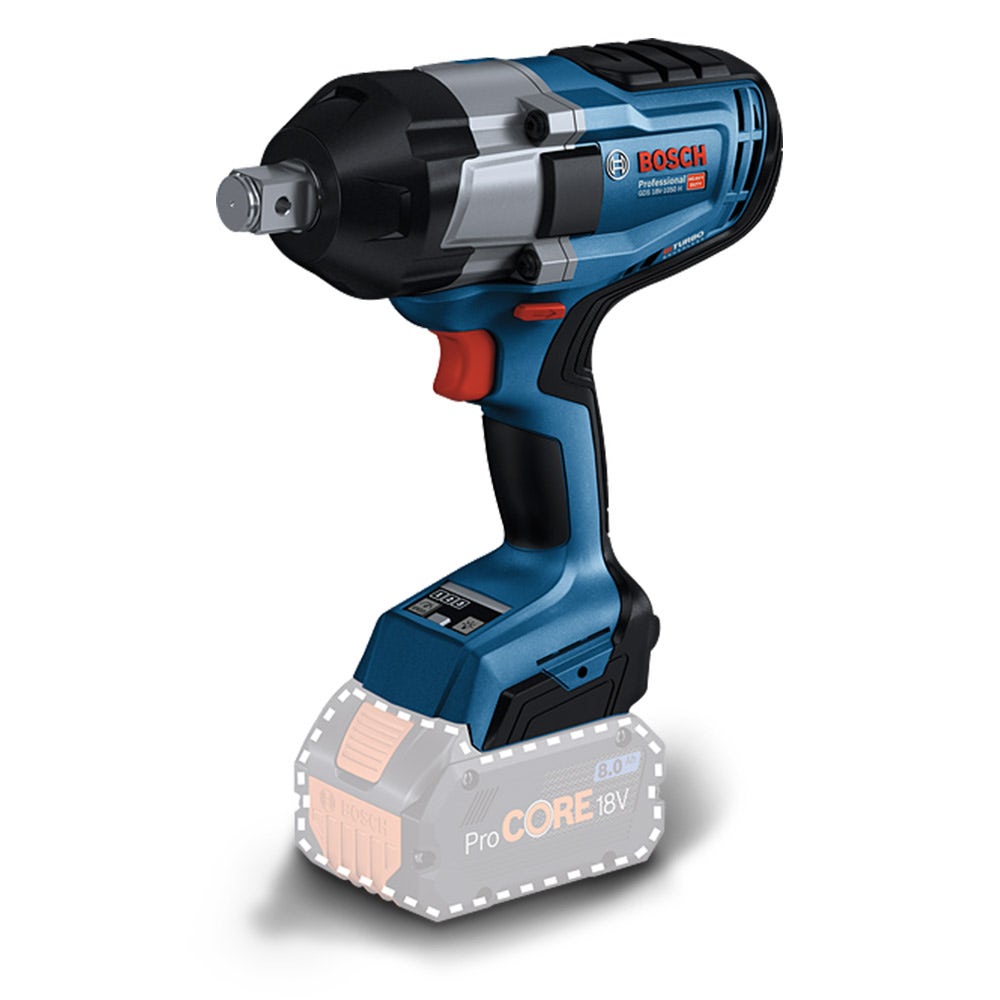

The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with a brushless motor for the most perse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximized for ProCORE18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 Nm for particularly challenging working environments. The high versatility in power control is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.
The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah.
The GDS 18V-1050 H Professional comes with additional figures like ECP, EMP, a tool status indicator, LED light, a 3/4" tool holder with friction ring plus through-hole, and a ladder clip.
- Impressive power with cordless freedom thanks to ProCORE18V batteries and brushless motor
- High-performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
- Ideal versatility and controlled power due to 3-speed/torque settings
Specifications:
- Torque adjustment range, min./max., 1st level: 0/350 Nm
- Torque adjustment range, min./max., 2nd level: 0/750 Nm
- Torque adjustment range, min./max., 3rd level: 0/1050 Nm
- No-load speed: 0-1,750 rpm
- No-load speed (1st level): 0-800 rpm
- No-load speed (2nd level): 0-1,200 rpm
- No-load speed (3rd level): 0-1,750 rpm
- Torque settings: 3
- Torque, max.: 1,050 Nm
- Impact rate: 0-2,600 bpm
- Impact rate (1st level): 0-1,600 bpm
- Impact rate (2nd level): 0-2,400 bpm
- Impact rate (3rd level): 0-2,600 bpm
- Tool holder: 3/4'' Square
- Breakaway torque, max.: 1,700 Nm
- Screw diameter: M 10 - M 24
*Battery and charger not included
Specification
Specifications
| Part No | 06019J8500 |
|---|---|
| Barcode | 4059952564654 |
| Brushless/Brushed | Brushless |
| Corded / Cordless | Cordless |
| Voltage | 18V |
| Batteries Supplied | No |
| Brand | Bosch |
| Warranty | 6 Year (requires registration) |
| Net Weight (kg) | 2.9 |
| Product Length (mm) | 240 |
| Product Width (mm) | 86 |
| Product Height (mm) | 222 |
Videos & Manuals
Videos
Bosch Professional BITURBO Brushless Revolutionary Performance
All About Bosch Professional BITURBO Brushless
BOSCH 18V BITURBO Brushless 3/4inch Impact Wrench Skin GDS 18V-1050 H 06019J8500
Manuals
- Product Data
