Description
Description

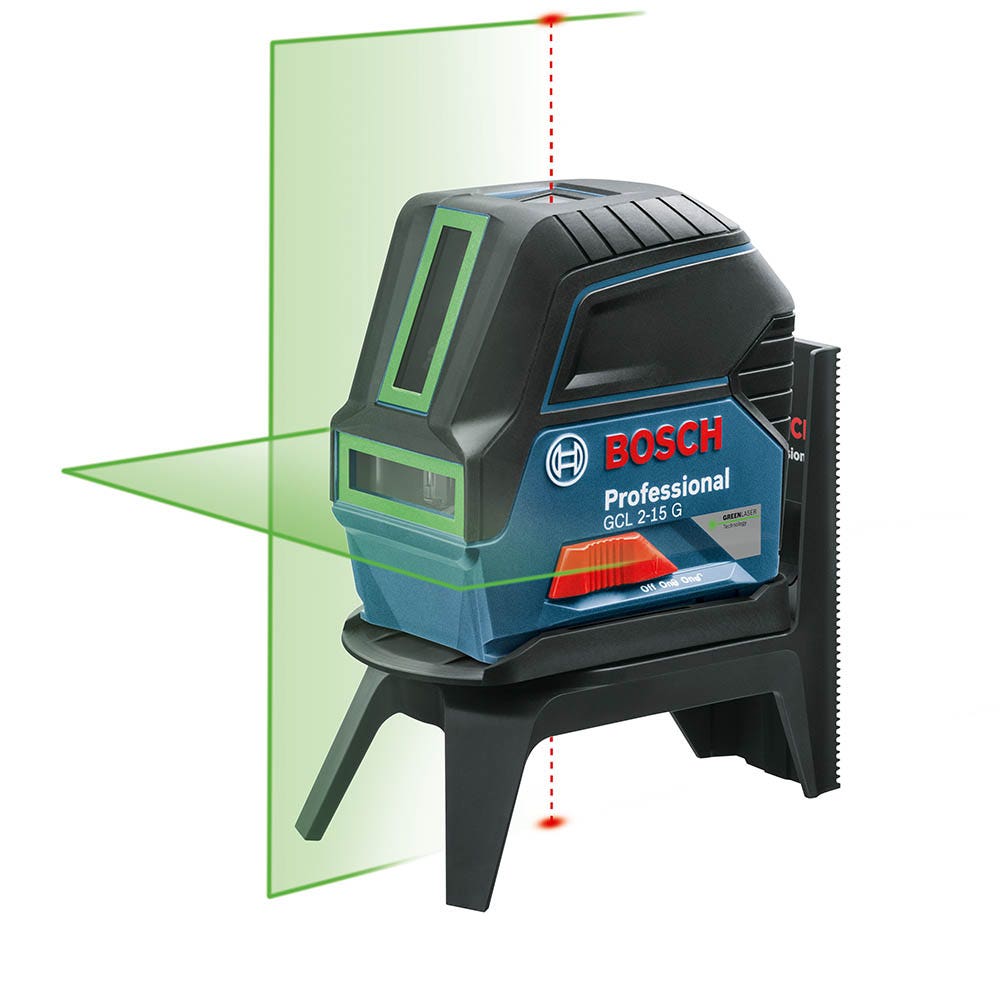

The Bosch GCL2-15G features green beam technology which offers users four times better visibility.
Features
- Green Beams offering 4 x better visibility
- Horizontal and Vertical lines (cross-line)
- Plumb Dots (Red Beam) up & down
- Multifunctional rotating base/mount
Specifications
Measurement Specifications
- Operating Range (without Receiver): 15m
- Operating Range (with Receiver):
- Operating Range (Plumb Points) max. 10m (top), 10m (bottom)
- Accuracy (Lines): ± 0.3mm/m
- Accuracy (Plumb Points): ± 0.7mm/m
- Self-Levelling Range: ± 4 degrees
- Levelling Time: 4 seconds
Laser Specifications
- Laser Colour: Green (Lines) and Red (Plumb Points)
- Laser Class: 2
- Laser Diode:
- Lines: 500-540nm, <10mW
- Points: 630-650nm, <1mW
Other Specifications:
- IP Rating: IP54 (dust and splash protection)
- Power Supply: 3 x 1.5V (AA)
- Tripod Thread: 1/4" & 5/8"
- Weight: 0.49 kg

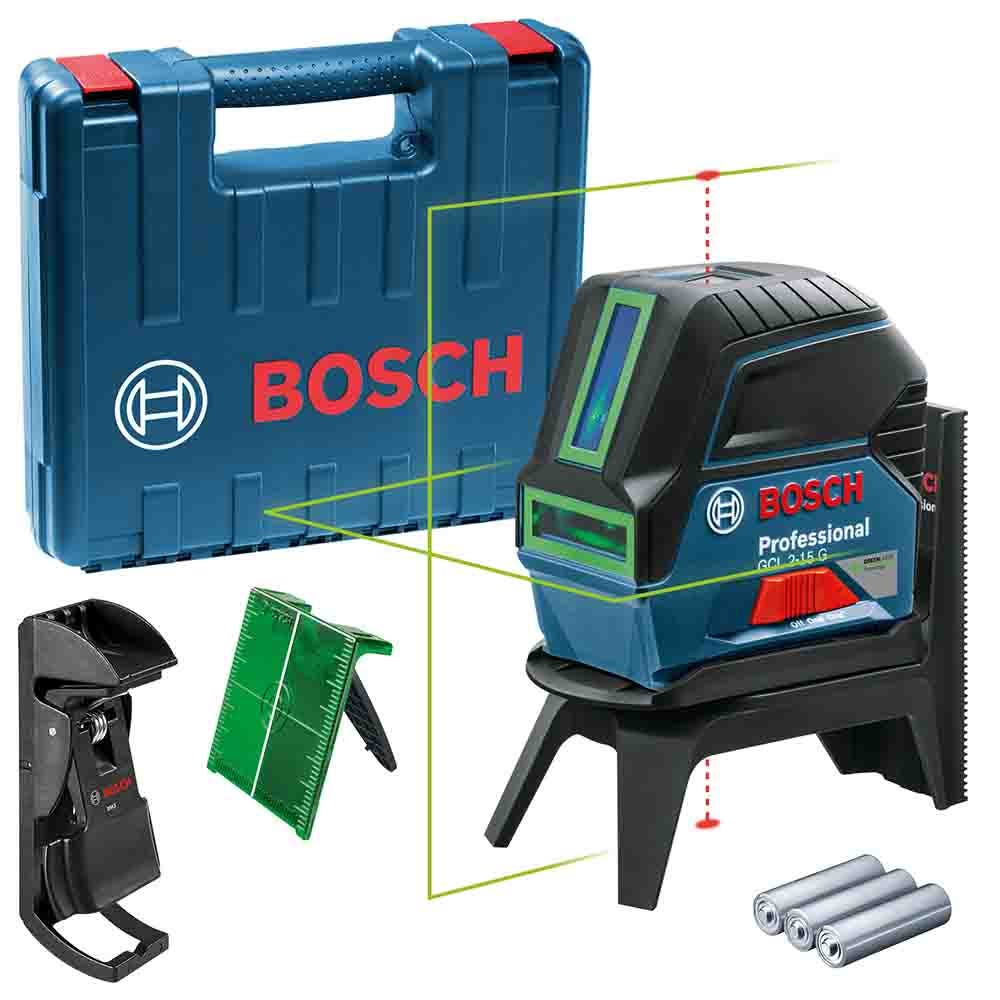

Includes
- GCL2-15G Cross-Line Laser Level
- Laser Target Plate
- 3 x 1.5V (AA) Alkaline Batteries
- User Manual
- Carry Case
Specification
Specifications
| Part No | 0601066J00 |
|---|---|
| Model Number | GCL2-15G |
| Barcode | 3165140869553 |
| Laser Colour | Green |
| Laser Class | 2 |
| Brand | Bosch |
| Warranty | 6 Year |
| Net Weight (kg) | 0.9 |
