Description
Description

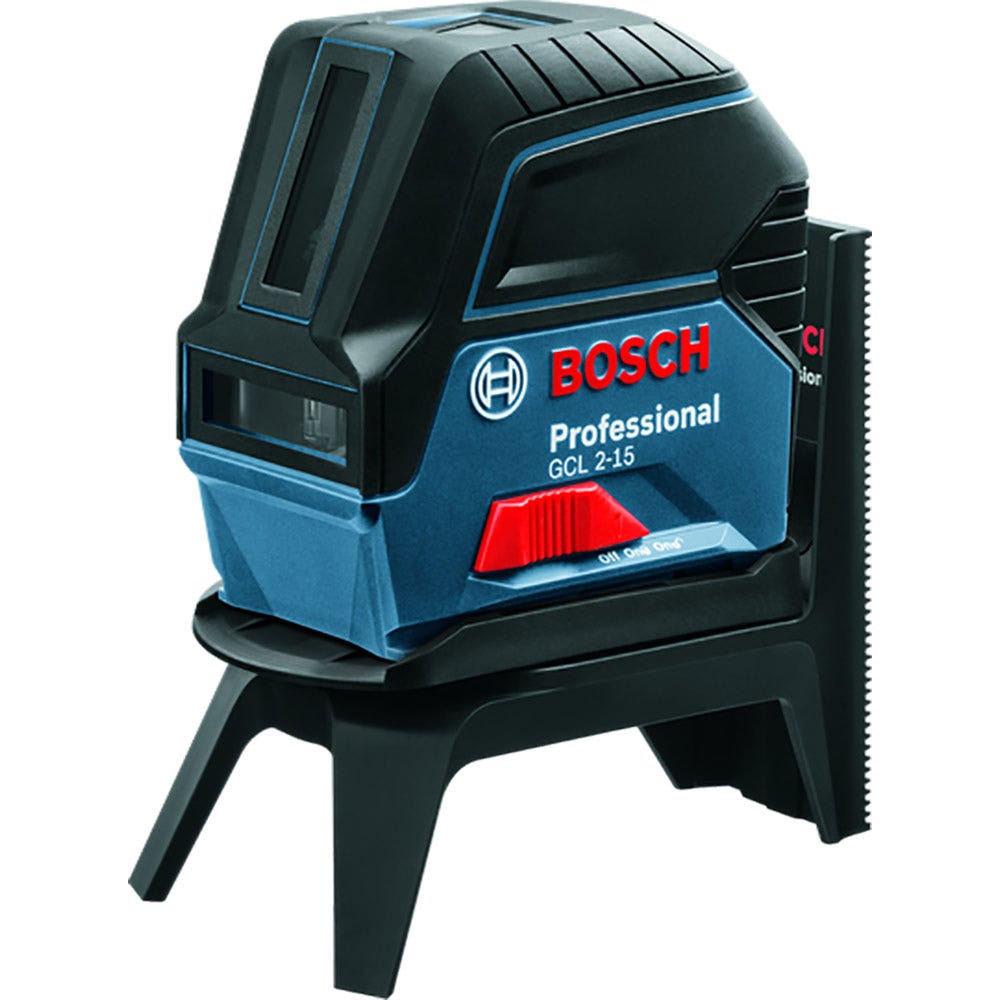

Compact and versatile for all short-distance levelling applications

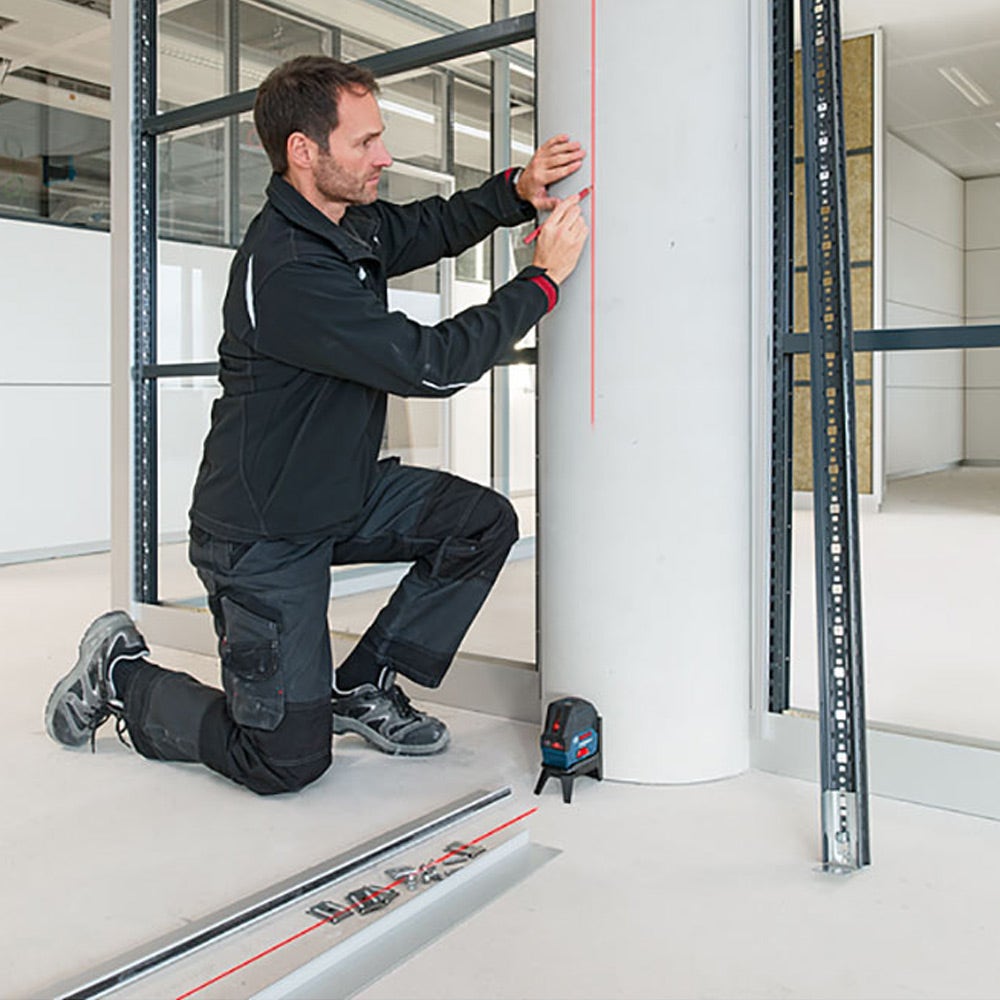

- Horizontal and vertical laser lines and two centred plumb points with optimal visibility
- Laser lines can be positioned around the centred plumb points

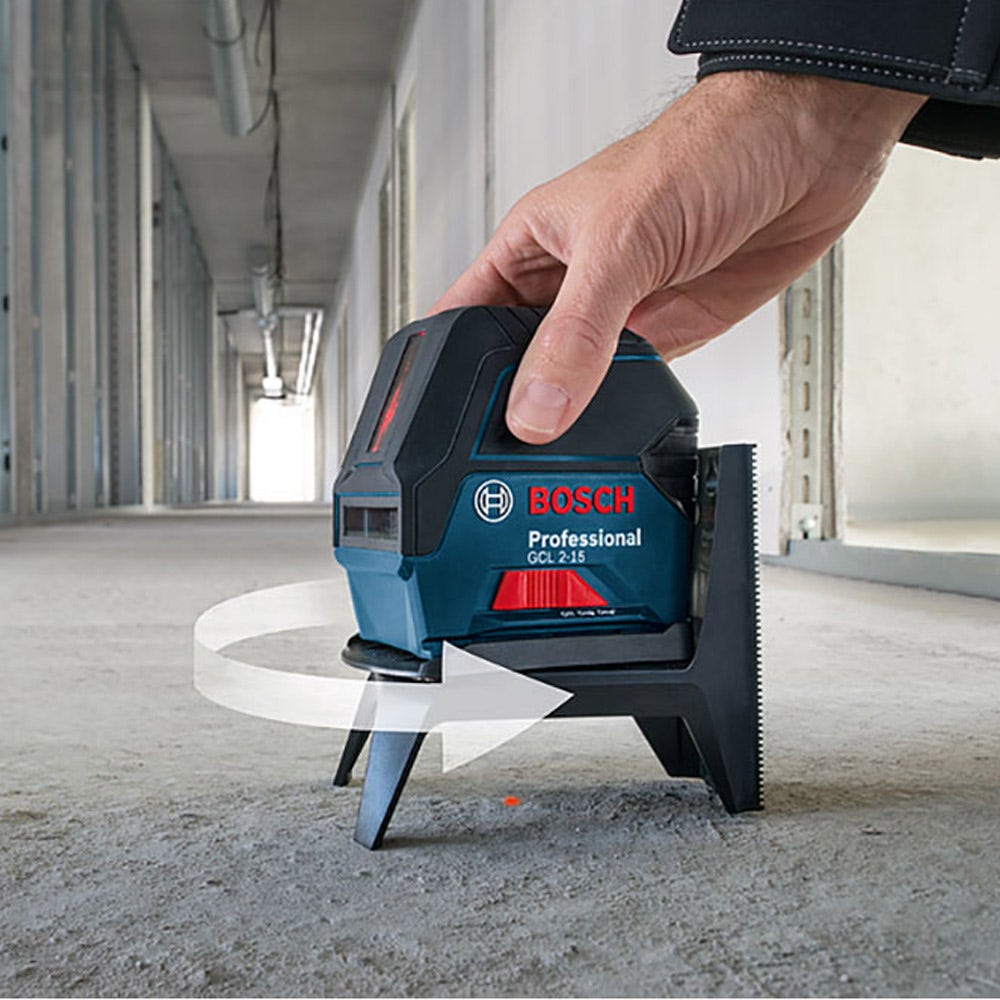

- Flexible to use with rotating RM 1 Professional multifunctional mount for aligning the laser lines and for versatile mounting of the tool
- Pendulum lock ensures safe transport
- Easy handling due to single-handed operation and intuitive user interface

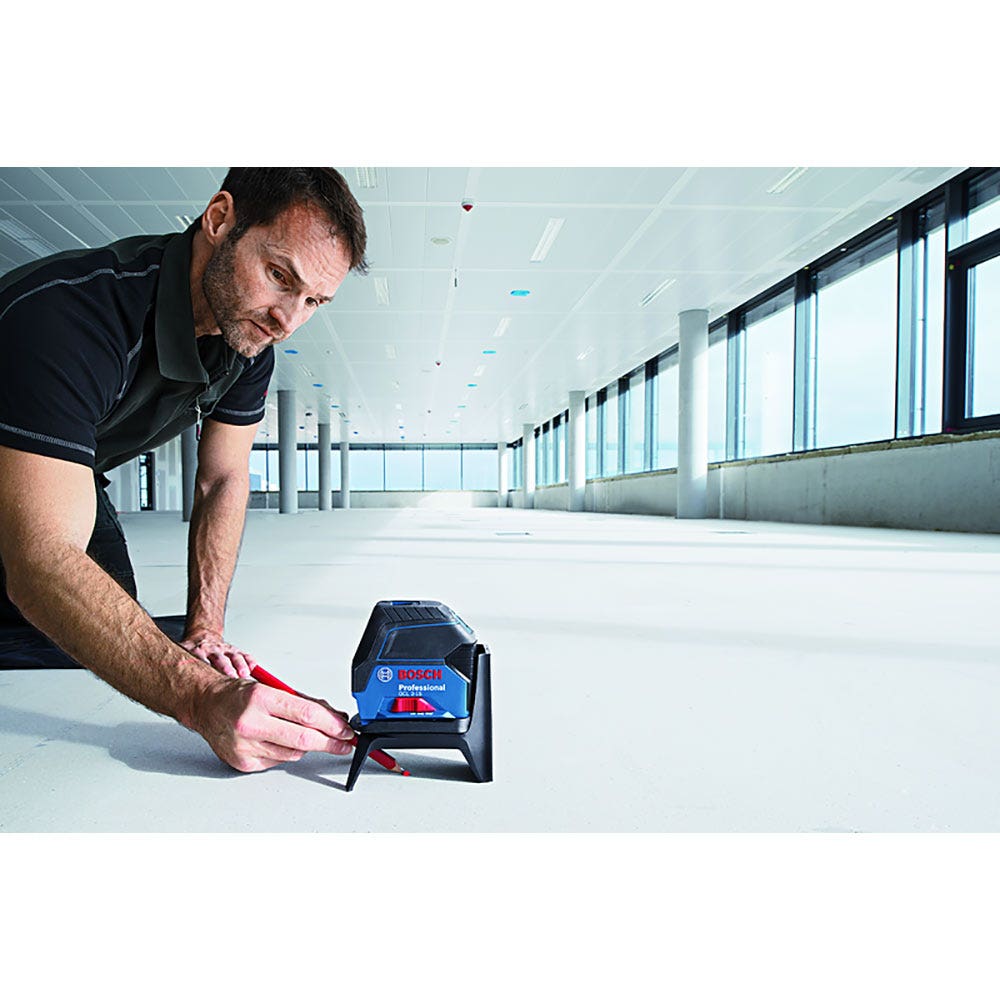

- Line and point mode freely selectable
- Horizontal and vertical self-levelling up to ±4°
Specifications:
- Laser diode: 630 – 650 nm, < 1mW
- Operating temperature: -10 – 50 °C
- Storage temperature: -20 – 70 °C
- Working range of laser points, max.: 10 m (top) , 10 m (bottom)
- Self-levelling range: ± 4°
- Levelling time: 4 s
- Power supply: 3 x 1.5 V LR6 (AA)
- Operating time (max.):
- 6 h in cross line and point mode
- 8 h in cross line mode
- 12 h in line and point mode
- 16 h in line mode
- 22 h in point mode
- Tripod thread: 1/4inch, 5/8inch
- Projection: 2 lines / 2 points
- Plumb point accuracy: ± 0.7 mm/m
Specification
Specifications
| Part No | 6.01E+07 |
|---|---|
| Barcode | 3165140837224 |
| Laser Colour | Red |
| Laser Class | 2 |
| Accuracy (mm) | +/- 0.3mm/m |
| Operating Range (m) | 15 |
| IP Rating | IP54 |
| Brand | Bosch |
| Warranty | 6 Year |
| Product Length (mm) | 327 |
| Product Width (mm) | 280 |
| Product Height (mm) | 121 |
