Immediate visualisation of temperature differences with smart documentation

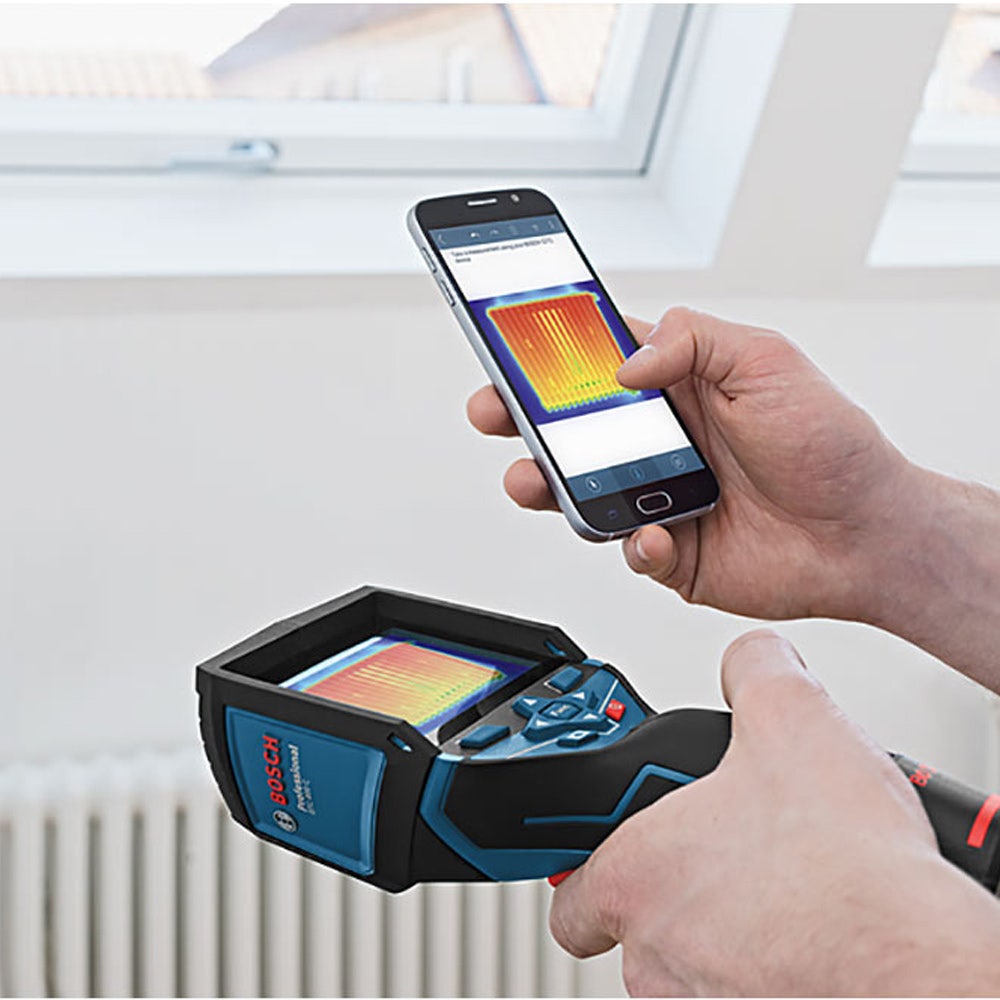

Fast exchange of data and easy documentation of thermal images with the Bosch Measuring Master app
Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries
- Infrared sensor with 19,200 measuring pixels (160 x 120) for detailed, informative thermal imaging
- Easy to use with clear, easy-to-read thermal images for an effortless introduction into the world of thermography

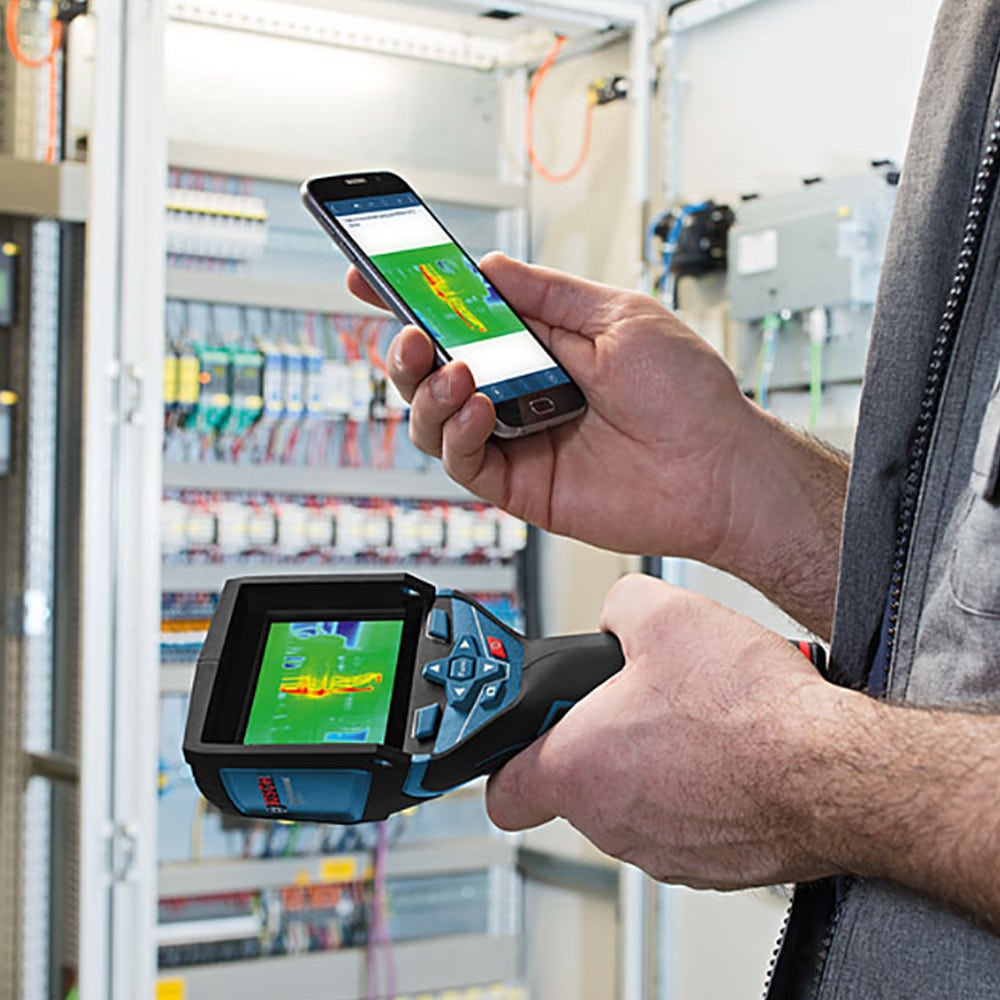

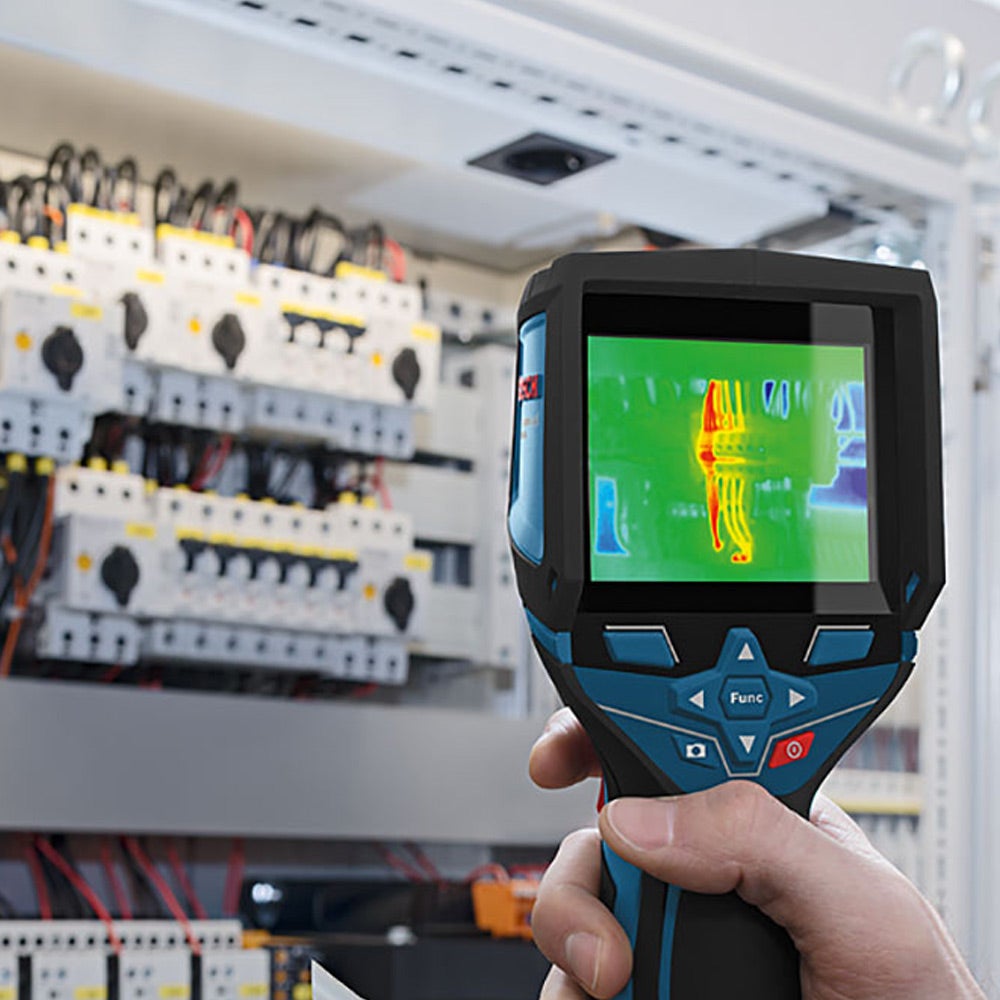

- Identify overheated components in electrical installations immediately – making system testing, inspections and maintenance efficient

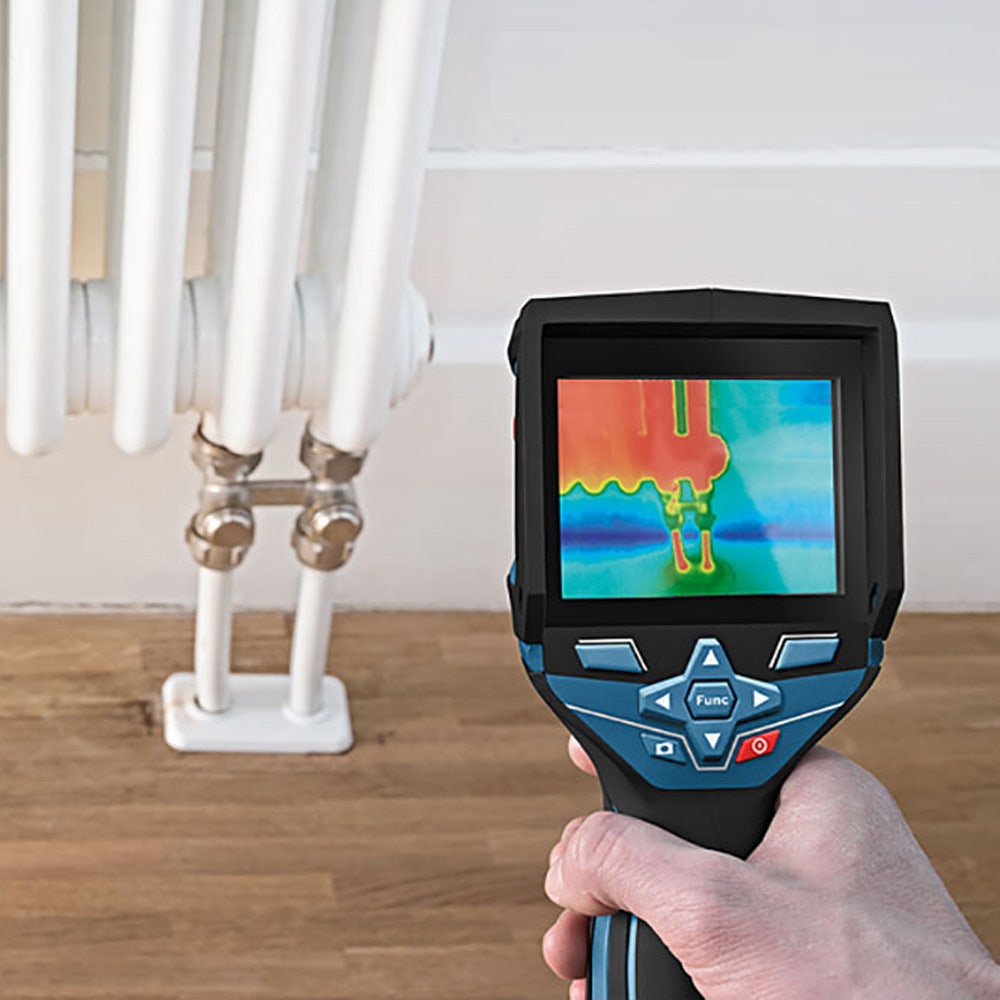

- Locate underfloor heating systems, heating elements and heating pipes easily to check that they are working properly
Specifications:
- Measurement range: -10 °C to +400 °C
- Measuring accuracy of IR: ±3.0 °C
- Optics (Ratio of meas. distance : meas. spot): 0
- Resolution: 0.1 °C
- Thermal sensitivity (NETD): <50 mK
- Size of IR sensor: 160x120 px
- Number of measuring points: 19,200
- Power supply and runtime: 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
- Frame buffer (number of images): 500
- Memory type: Internal memory
- File format of image: .jpg
- Data transfer: MicroUSB , Wi-Fi
- Dust and splash protection: IP 53
- Supported Android devices: Smartphone with Android 4.3 or higher , Tablet with Android 4.3 or higher
- Supported iOS devices: iPad (3rd Gen. or higher) , iPad Air (1st Gen. or higher) , iPad mini (1st Gen. or higher) , iPhone 4S or higher
- Display type: TFT LCD
- Size of display: 3,5"
- Operating temperature: -10 – 45 °C
- Storage temperature: -20 – 70 °C
Specification
Specifications
| Part No | 601083150 |
|---|---|
| Barcode | 3165140913539 |
| Corded / Cordless | Cordless |
| Brand | Bosch |
| Warranty | 6 Year |
| Product Length (mm) | 262 |
| Product Width (mm) | 182 |
| Product Height (mm) | 168 |
