Engine Type
450cc liquid-cooled single-cylinder
Bore And Stroke
96.0mm x 62.1mm
Compression Ratio
13.5:1
Valve Train
Unicam SOHC; four valves per cylinder
Induction
Programmed Fuel Injection (PGM-FI), 44mm downdraft throttle body
Transmission
Close-ratio five-speed
Final Drive
#520 Chain; 13T/49T
Front Suspension
49mm inverted Showa fork with 13-position rebound and 15-position compression-damping adjustability; 12.2-inch travel
Rear Suspension
Pro-Link Showa single shock with adjustable spring preload, 11-position rebound and six-position high- and low-speed compression-damping adjustability; 12.4-inch travel
Front Brake
Single 260mm disc with twin-piston caliper
Rear Brake
Single 240mm disc
Front Tire
Dunlop MX33 80/100-21
Rear Tire
Dunlop MX33 120/80-19
Wheelbase
58.3 inches
Rake (Caster Angle)
27.1°
Trail
4.5 inches
Seat Height
38.0 inches
Ground Clearance
13.2 inches
Fuel Capacity
1.7 gallons
Curb Weight
245 pounds (Includes all standard equipment, required fluids and full tank of fuel)
Available Colors
Red
Model ID

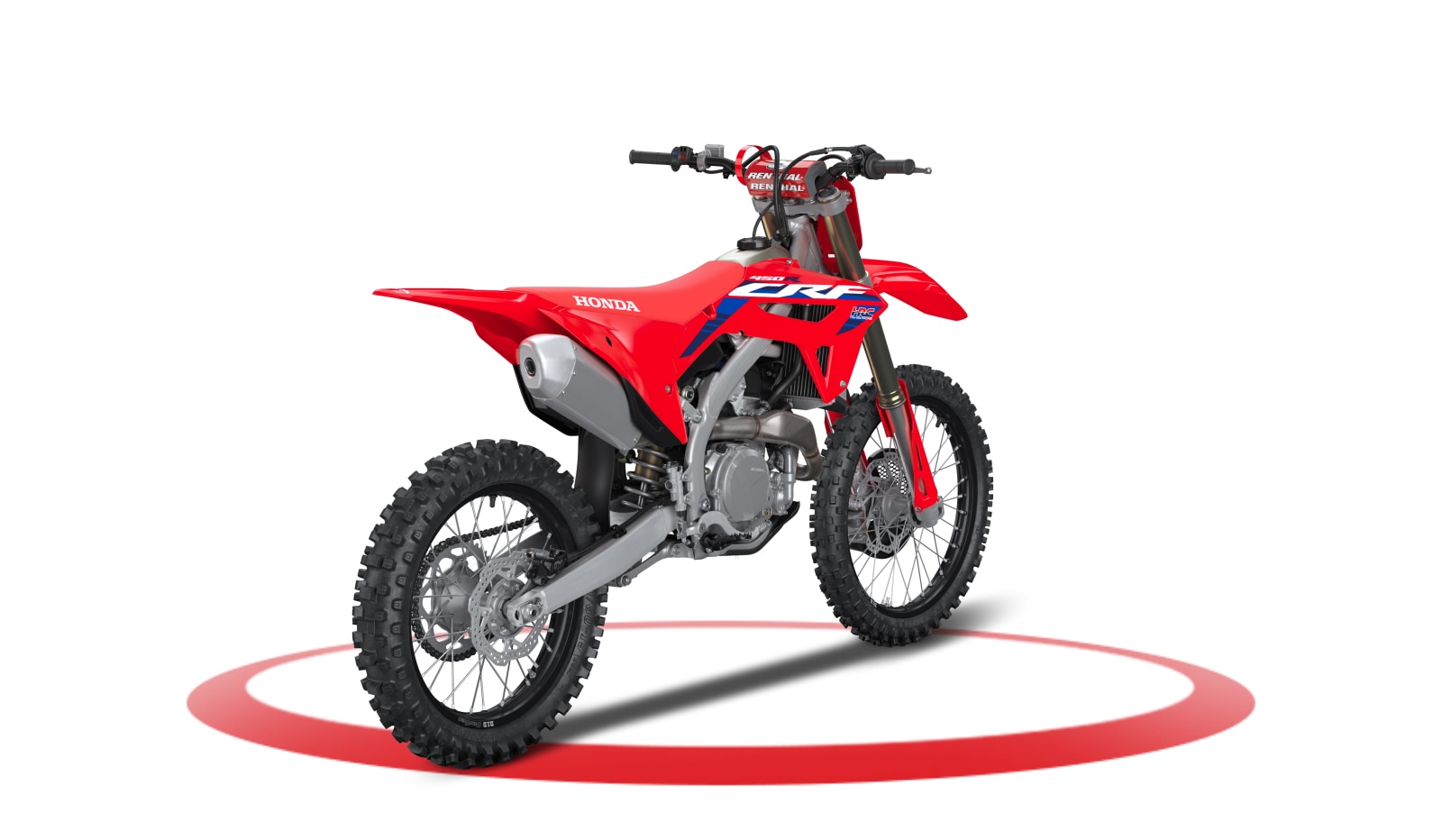

CRF450R
