Description
Description
- GREEN BEAM DIODE: Class leading green beam diode to ensure better beam visibility on the jobsite even when brighter conditions
- ACCURACY OF ±3MM @ 10M: Professional accuracy provided to the end user ensures being precise on the jobsite
- 3X360° SELF LEVELING LINES: The self levelling multiline laser projects 3 bright 360° horizontal and vertical lines (independently or as a cross), up to 40m (100m w/ detector)
- OFF LAST MODE: For added convenience the 3 lines appear in previous state prior to unit being turned off
- PIVOTABLE BRACKET WITH MAGNETS: For safe sticking to metal studs
- PENDULUM LOCK: To help prevent damage to internal components
- 18V XR BATTERY COMPATIBILITY: Taking advantage of the well known and distributed 18V battery system of DEWALT – making it compatible as well for the line laser system
Specifications:
- Working Range: 40m (With Detector: 100m)
- Accuracy Line: ±3mm @ 10m
- Compensation Range: ±4°
- Leveling Time (seconds): ≤5s
- IP Rating: IP54
- Drop test: 1m
- Power: 18V XR Compatible
- Run Time: Up to 11 Hours
- Mounting Thread: 1/4“ & 5/8” (integrated in bracket)

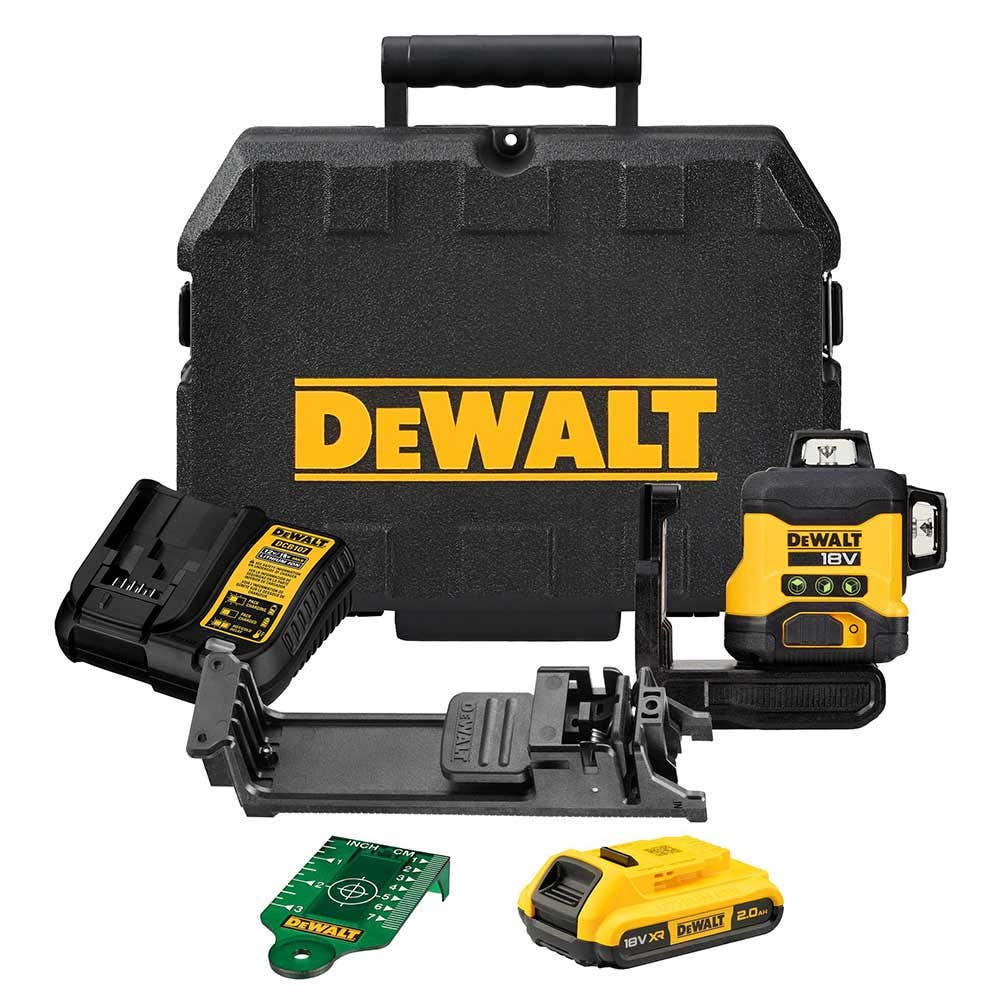

Includes:
- Laser
- 18V 2.0ah battery
- Charger
- Green Target Card
- Wall Mounting Bracket
- Blowmould Case
Specification
Specifications
| Part No | DCLE34031D1-XE |
|---|---|
| Barcode | 5035048749630 |
| Laser Colour | Green |
| Battery Capacity | 2.0Ah |
| Voltage | 18V |
| Brand | Dewalt |
| Product Length (mm) | 360 |
| Product Width (mm) | 280 |
| Product Height (mm) | 140 |
