Invertec V155-S TIG welder is lightweight and portable for stick and DC TIG welding.
Features & Benefits
Portable. Professional. Rugged. Affordable.
The Invertec® V155-S offers much more than you would expect from a welder this size. Weighing in at just under 15 lbs. (6.8 kg) the Invertec® V155-S is no lightweight contender. It packs the full punch of a heavyweight professional that you can take to the most demanding job sites. It features 120/230V auto reconnect operation and can operate from a portable generator. It can also plug into a 200 ft. (61 m) 230V extension cord so you can weld just about anywhere.
- Two stick modes, SOFT and CRISP, provide the right arc characteristics for different types of electrodes.
- Fan-As-Needed™ (F.A.N.™) reduces noise and dust inside the machine.
- Auto-Adaptive Arc Force minimizes electrode sticking in the puddle without compromising arc stability or increased spatter.
- Automatic Hot Start boosts the current during starting to make striking an arc easier.
- Touch Start TIG® mode - it’s like getting a TIG welder for free!
Processes
DC TIG, Stick
Input Power
115/230/1/50/60
Input Current
22.8A28.8A
Mode
CC
Polarity
DC
Output Range
5-155A DC
Rated Output
130A/15.2V/30%155A/16.2V/30%
Dimensions
6.2in x 11.3in x 15.4in (158mm x 288mm x 392mm)
Weight
30lbs. (13.608kg)

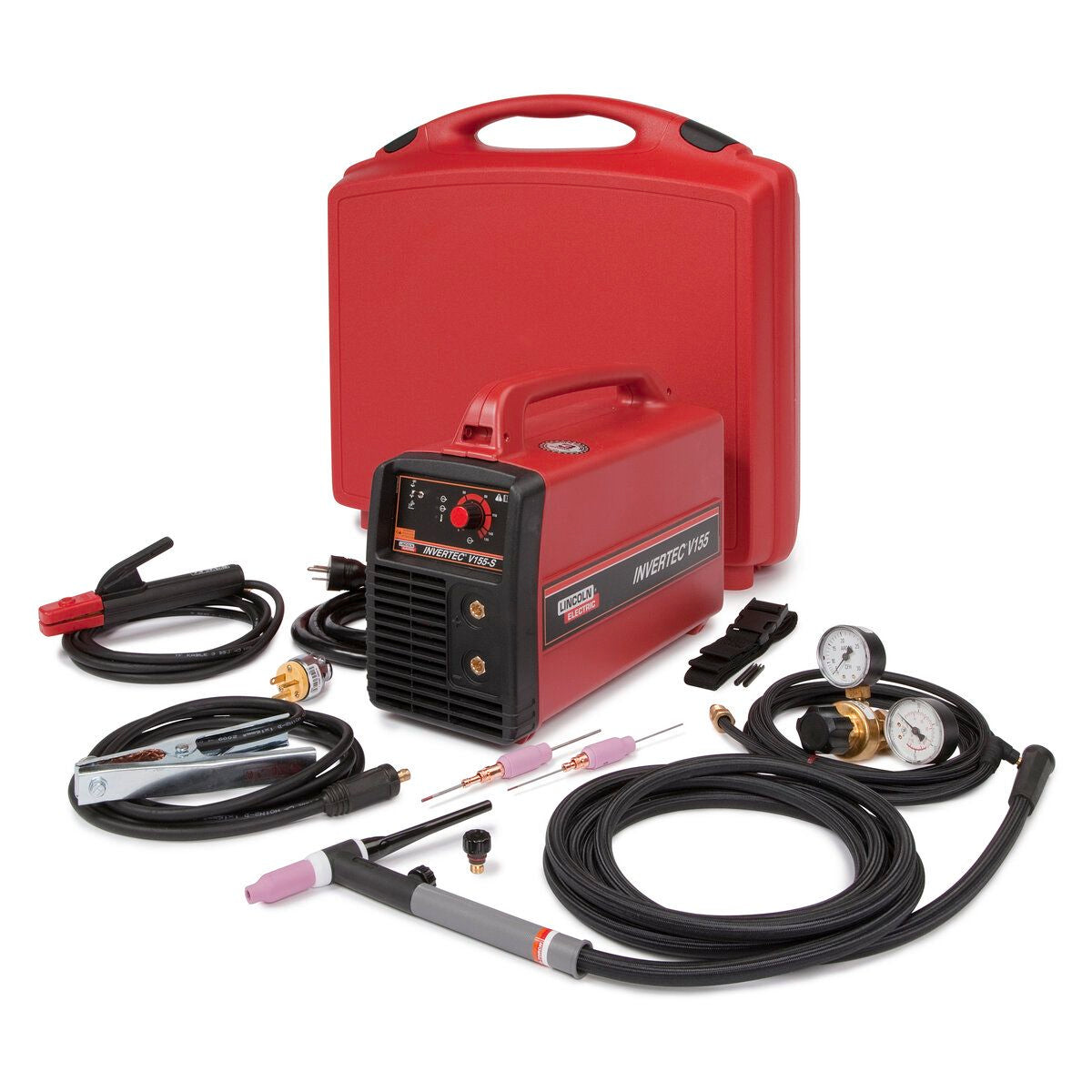

Each assembled package contains:
- Invertec® V155-S
- Stick electrode holder and cable, 10 ft. (3.0 m) with Twist Mate™ plug
- Work clamp and cable, 10 ft. (3.0 m) with Twist Mate™ plug
- Fully adjustable shoulder strap
- 120/230V input cord, 6.6 ft. (2 m) with a 120V 15 Amp plug
- Extra 120V 20 Amp plug
- Gas regulator
- PTA-17V TIG torch with Ultra-Flex™ cable and Twist Mate™ adapter
- PTA-17 TIG accessory kit (KP508)
- Easy-Store/Easy-Carry Case
