Description
Description

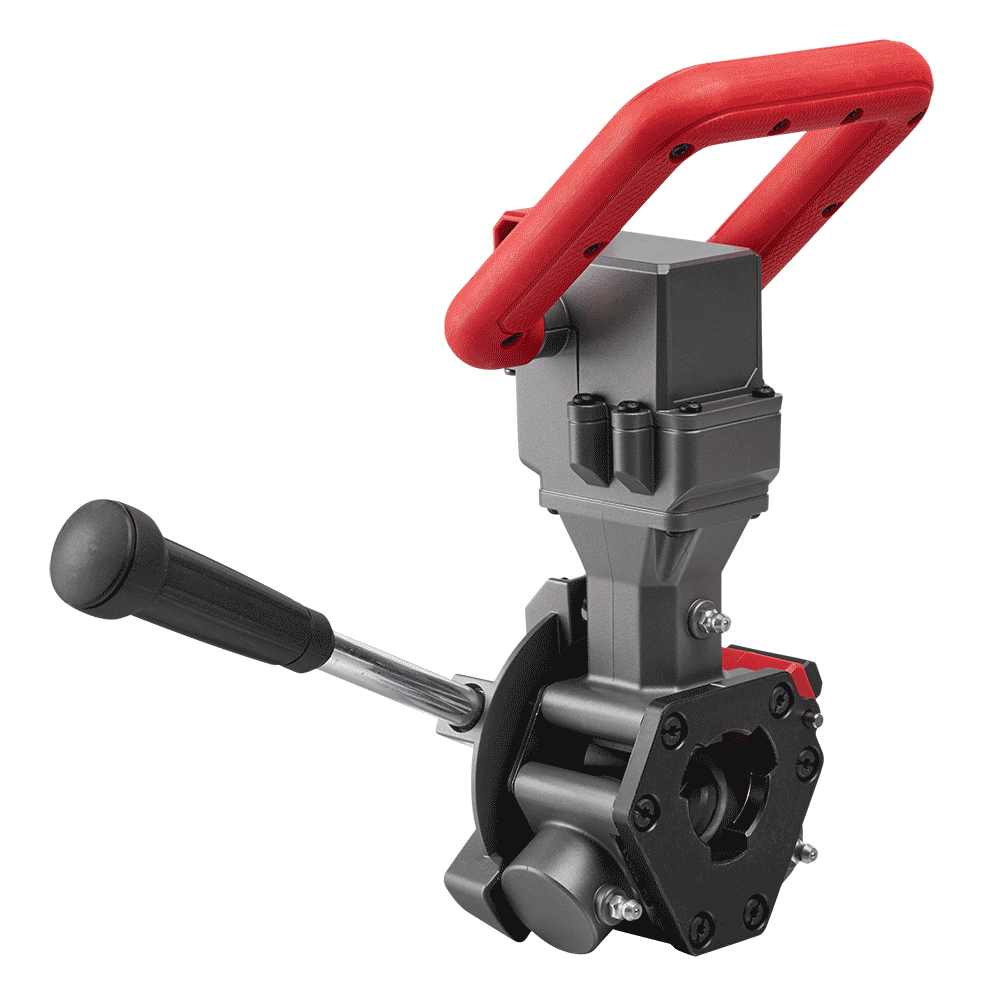

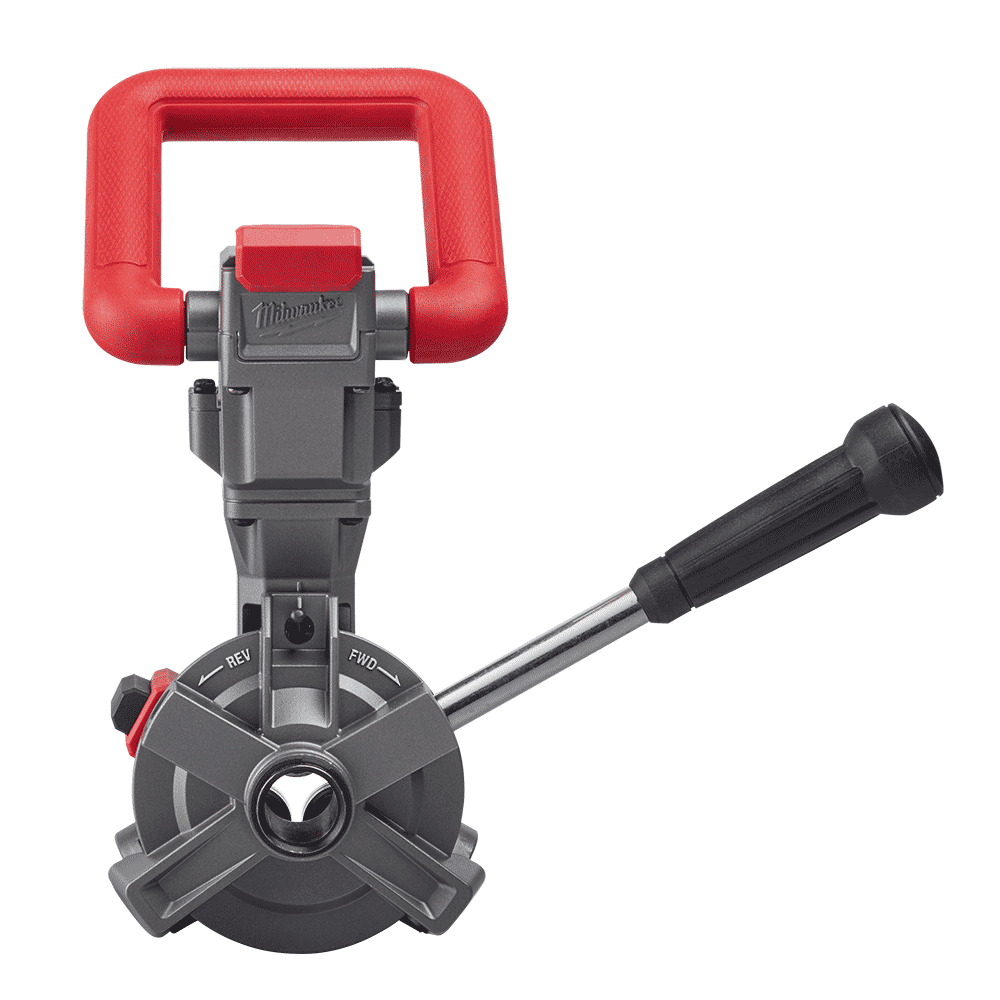

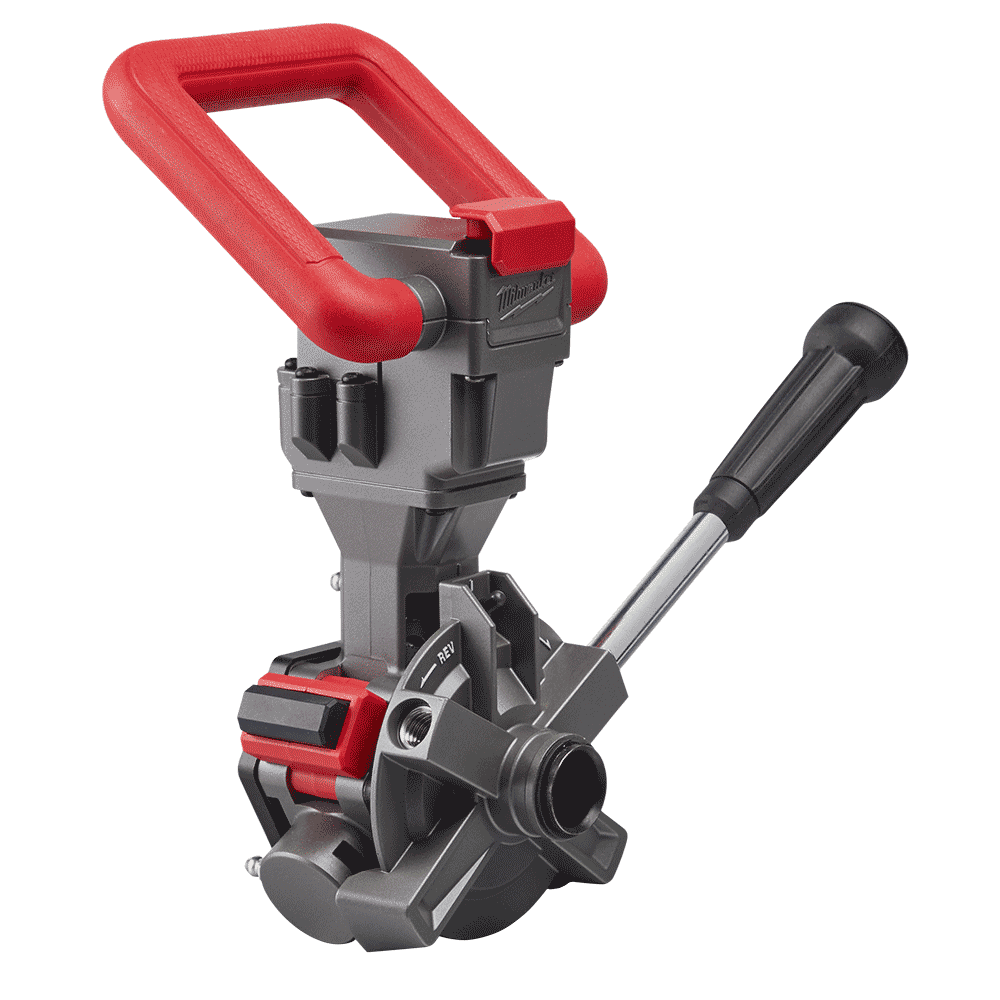

The CABLE DRIVE™ Assembly for the M18™ Brushless Compact Drum Machine (47532816) provides you with the ability to automatically feed and retract cables through 32 mm to 101 mm (1-1/4" to 4"), at up to 4.5 - 6 metres per minute. The ratcheting lever automatically adjusts for the 9.5 mm and 12.7 mm inner core drain cleaning cables. The RAPID STOP™ release of steel bearings provides a quick way to release the cable once the blockage is reached, preventing the cable from binding. The twist-lock feature allows the CABLE DRIVE™ Assembly to be easily swapped between drums for maximum efficiency.
- Compatible with the M18™ Brushless Compact Drum Machine
- Ratcheting lever automatically adjusts to the cable diameter
- Allows for manual feeding and retracting of cable if needed
- Twist lock attachment allows for CABLE DRIVE™ assembly to Be Easily Removed
- Feeds and retracts cable up to 4.5 to 6 metres per minute
- Steel bearings for increased durability
Specification
- Platform: M18™
Includes
- 1 x Cable Drive Assembly
- 1 x Cable Drive Mounting Plate
Specification
Specifications
| Part No | 47532816 |
|---|---|
| Barcode | 4892210222459 |
| Brand | Milwaukee |
| Net Weight (kg) | 2.3 |
| Product Length (mm) | 108 |
| Product Width (mm) | 266 |
| Product Height (mm) | 311 |
Videos & Manuals
Manuals
- MILWAKEE CABLE DRIVE™ Assembly Suits M18BCDM502 47532816 - Product Manual
