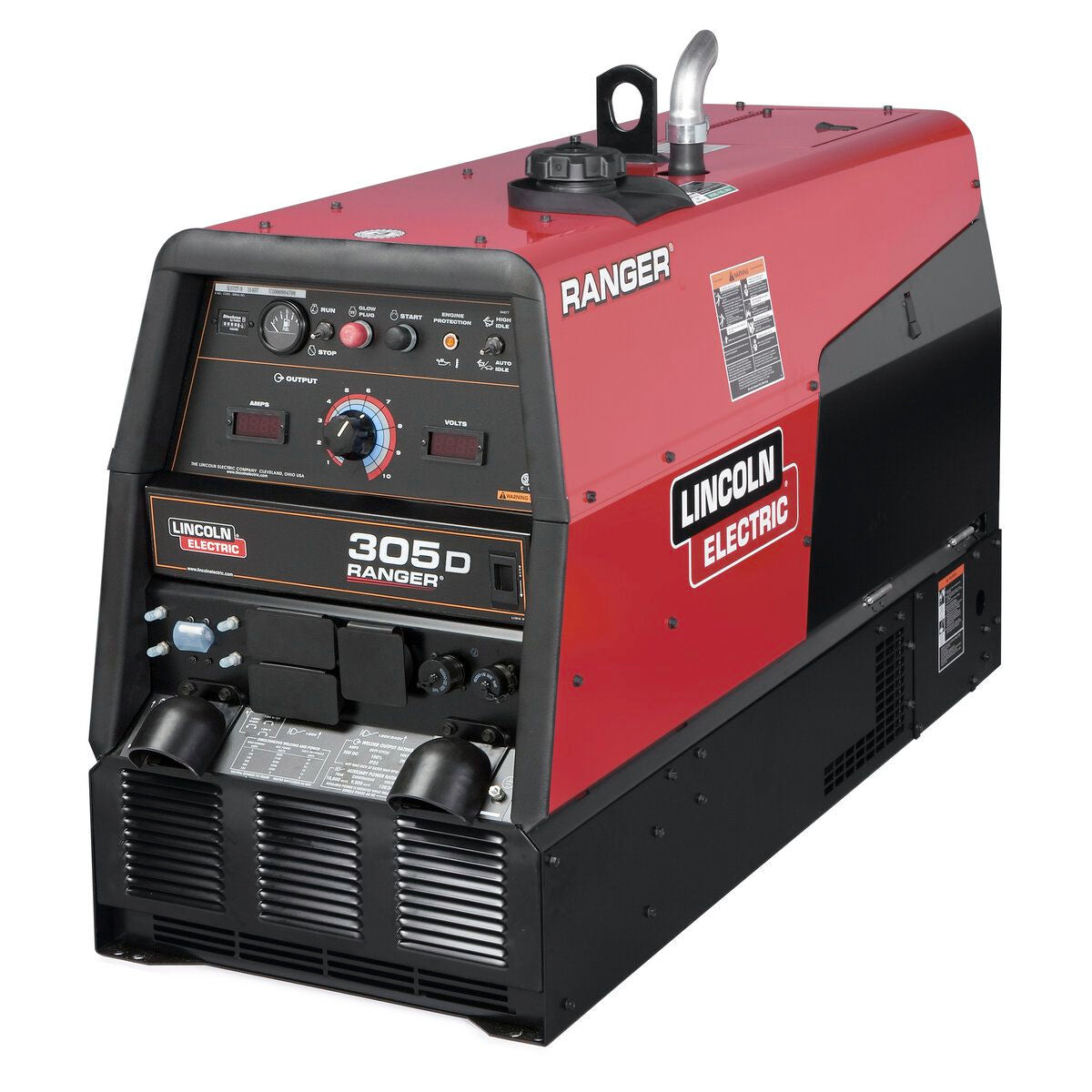

A high speed, welder/generator capable of up to 305 amps of DC multi-purpose welding and 120/240 VAC single phase auxiliary power. Powered by a 18.8 hp Kubota® D722 diesel engine and features patented Chopper Technology®.
Choose the Ranger® 305 D for extended fuel efficiency and compatibility with diesel-powered fleets. The small footprint offers up to 305 amps of multi-process welding output and 10 kW single-phase AC power for motor starting, tools, and inverter welders for extended range and process capability.
Processes
Stick, TIG, MIG, Flux-Cored
Mode
CC/CV
Polarity
DC
Output Range
20-250A TIG14-29V CV20-305A DC40-300A Pipe
Rated Output
300A DC CV/29V/100%305A DC CC/29V/100%
Engine Type and Fuel Type
KubotaD722 EPA Tier 4Diesel
Generator Continuous Power
9500
Generator Peak Power
10000
Horsepower
18.8
Speed
3600
Dimensions
21.5in x 29.9in x 52.3in (546mm x 759mm x 1327mm)
Weight
698lbs. (316.613kg)
