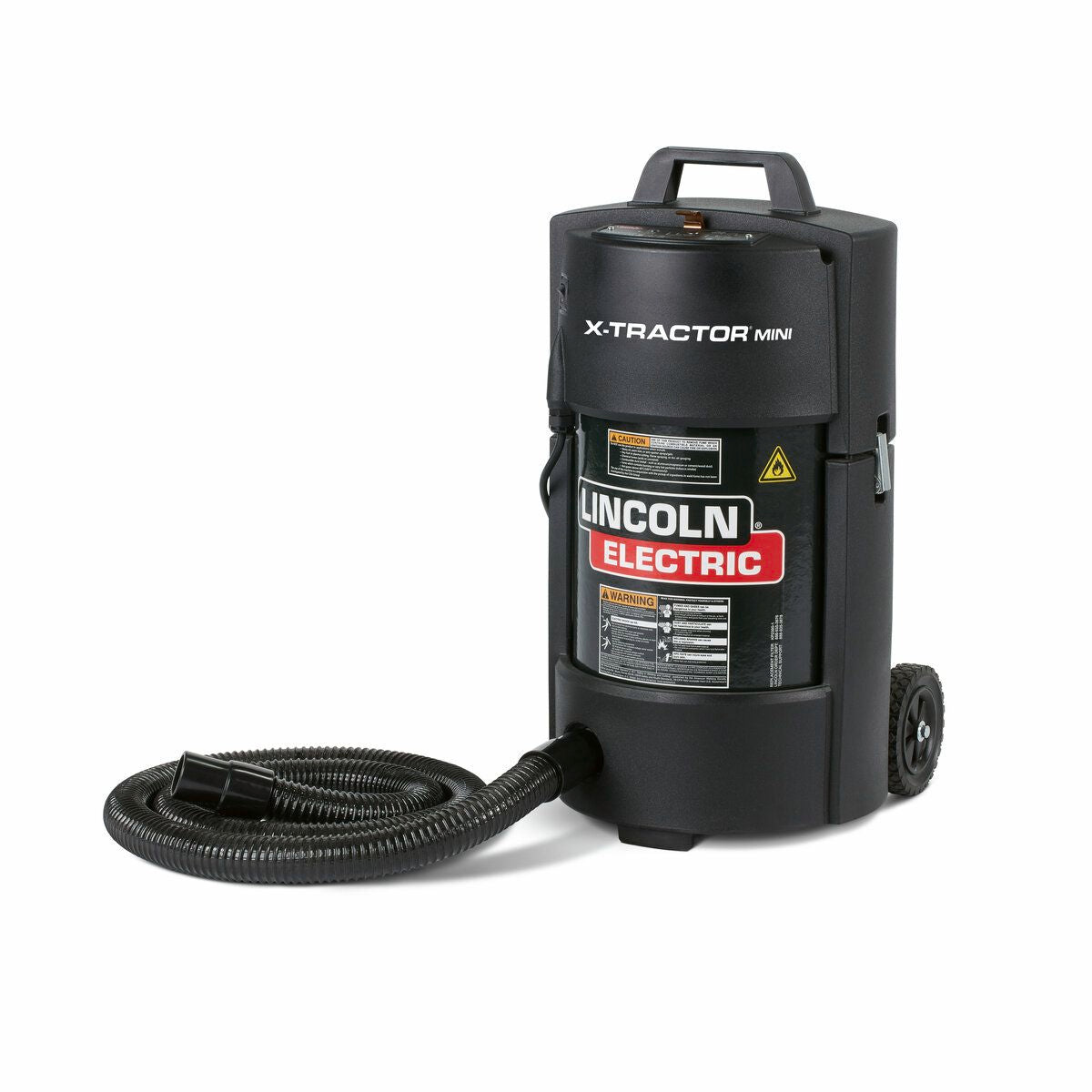

X-Tractor®Mini portable welding fume extractor is a high vacuum system for the removal and filtration of welding fumes from light duty welding applications.
Features & Benefits
FUMES DON’T STAND A CHANCE
The X-Tractor® Mini is a light weight; high vacuum portable fume extraction system designed to filter particulate and remove welding fumes. Intended for light duty welding applications; the quiet operation and portability of the Miniflex make this system an ideal solution for confined and hard to reach spaces.
- Create a safer work environment for welders/shop employees
- Effectively remove weld fume particulate with large surface area coverage and 99.7% filter unit efficiency
- Light weight; durable construction and portable design
- Compact size for use anywhere you go
Weight
40lbs. (18.144kg)
Processes Stick (Light Duty), TIG, MIG, Flux-Cored (Light Duty) Input Power 120/1/60 Input Current 12.0A Sound Level 80 dBA Airflow CFM Low 95 / High 108 Power Rating HP 2.4 (1.2 / Motor) Filter Surface Area ft2 (m2) 118 (11) Dimensions H x W x L 29 in x 15.6 in x 16.8 in (736 mm x 396 mm x 427 mm) - Extraction Hose with adapter - 8 ft. (2.4 mm) length; 1-3/4 in. (45 mm) I.D.
- LongLife-H™main filter
- HEPA filter
- Carbon Brushes (set of 2) and seals for motor
